Welded Steel Pipe
Welded Steel Pipe
Diameter:
From 12.7mm to 508mm (or as requested)
Wall thickness:
From 0.6mm to 12mm
Standard length:
6000mm–12000mm
Common steel grades:
ASTM A53, ASTM A106, and API 5L
Mills in Viet Nam:
Hoa Phat, 190, TVP, Phu Xuan Viet, Sai Gon, Nam Hung, Viet Duc
Mills imported form:
China, India, South Korea, Japan, Russia
Standards:
TCVN, EN, JIS, ASTM
Key Advantages:
- High durability and excellent load-bearing capacity.
- Excellent resistance to compression, tension, and torsion forces.
- Corrosion and rust resistance
- High aesthetic value
- Easy fabrication and assembly
High production output
Large manufacturing capacity to efficiently fulfill bulk orders and key projects.
Competitive pricing
Offering budget-friendly yet competitive prices while maintaining product quality.
Trusted by clients
Chosen by hundreds of domestic and international clients for consistent quality and professional service.
Describe Product
Mục lục
Welded steel pipes are cylindrical pipes formed by rolling steel plates or coils and then joining the edges through welding processes such as Electric Resistance Welding (ERW) or Submerged Arc Welding (SAW). Unlike seamless pipes, welded pipes have a longitudinal or spiral seam where the edges are fused together.
These pipes are widely used in various industries due to their cost-effectiveness, versatility, and availability in a wide range of sizes and thicknesses.
I. FEATURES
- High durability and excellent load-bearing capacity.
- Excellent resistance to compression, tension, and torsion forces. Minimizes the risk of warping or cracking under load, particularly in high-stress structural applications.
- With a hollow design, steel pipes maintain strong rigidity while reducing weight, helping to lessen the load on the structure.
- Corrosion and rust resistance: Especially when galvanized or powder-coated, steel pipes can withstand harsh environments such as humidity, chemicals, or outdoor conditions.
- High aesthetic value: With a smooth surface, steel pipes are easy to fabricate into attractive structures, suitable for both industrial and residential uses (such as railings, door frames, furniture, etc.).
- Easy fabrication and assembly: Steel pipes can be easily cut, bent, welded, and connected, offering flexibility in design and construction.
| Tính chất vật lý(Mechanical Properties) | Tính chất hoá học(Chemical Composition) | |||||||
|---|---|---|---|---|---|---|---|---|
| Mác thép(Grade) | Độ bền chảy(Yeild Strength) (Mpa ~ N/mm2) Min |
Độ bền kéo(Tensile Strength) (Mpa ~ N/mm2) Min |
Độ giãn dài(Elongation) % |
C% | Si% | Mn% | P% | S% |
| SS400 | ≥ 245* | 400 – 510 | ≥ 21 | ≤ 0.29 | ≤ 0.40 | ≤ 1.6 | ≤ 0.050 | ≤ 0.050 |
| A36 | ≥ 250 | 400 – 550 | ≥ 20 | ≤ 0.26 | ≤ 0.40 | ≤ 0.040 | ≤ 0.050 | |
| Q235B | ≥ 235* | 375 – 500 | ≥ 26* | ≤ 0.20 | ≤ 0.30 | 0.30 – 0.70 | ≤ 0.045 | ≤ 0.045 |
| A572 Gr50 | ≥ 345* | 450 – 620 | ≥ 18 | ≤ 0.23 | 0.15 – 0.40 | 1.35 – 1.65 | ≤ 0.040 | ≤ 0.050 |
| Q355B | ≥ 355* | 470 – 630 | ≥ 22 | ≤ 0.24 | ≤ 0.55 | ≤ 1.6 | ≤ 0.035 | ≤ 0.035 |
II. TOLERANCE
Diameter tolerance: ±0.5 – ±1.0%
Weight tolerance: ±5 – 10%
III. PACKAGING
Bundle weight: 1.2 metric tons per bundle
IV. PRACTICAL APPLICATIONS

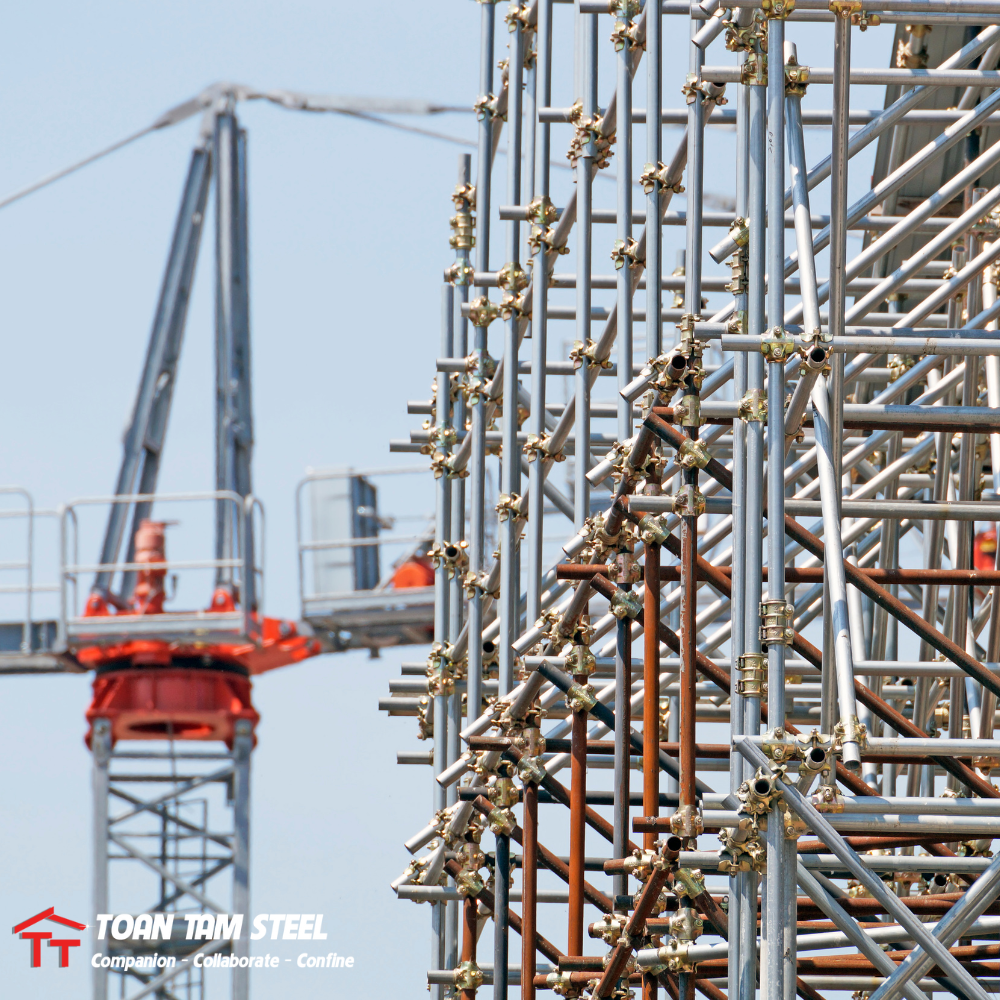

- Construction: Scaffolding, steel structures, pre-engineered building frames, fences
- Mechanical & Fire Protection Systems (MEP – Firefighting): Water pipelines, gas pipelines, fire protection systems
- Manufacturing Industry: Oil and chemical pipelines, machinery frames
- Agriculture: Greenhouse frames, support columns, irrigation systems
- Household & furniture industry: Steel tables and chairs, door frames, metal shelves
V. WELDED STEEL PIPE BRANDS
Currently, there are several well-known and reputable welded steel pipe brands on the market, including: Hoa Phat, 190, TVP, Phu Xuan Viet, Sai Gon, Nam Hung, Viet Duc, ...
